Catalog # 309462 - Model LineSelect™ 9462 5-Channel RJ45 Cat5e A/B/C Switch

    elect™ 9462 5-Channel RJ45 Cat5e A/B/C Switch
Click image to enlarge
Base Price:
$1,375.00
Catalog No: 309462
Model No: 9462
Switch Type (Fiber, Ethernet, etc.):Ethernet
Interface:RJ45 Cat5e
Positions:3
Channels per Switch/Chassis:5
Chassis/Rack Configuration:Rackmount
Compliance/Category Rating:Cat5e
Connector/Port:RJ45 female
Pins Switched:8 pins
Local/Manual Control:Rotary Switches

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

LineSelect™
Cat5e Manual Network Switch, RJ45
LineSelect™ Model 9462 Five-Channel Cat5e RJ45 A/B/C Switch, Manual, Independent Switching, Rackmount
  • Applicable to switching ANY RJ45 interface, quickly and easily.
LineSelect™ Model 9462 Five-Channel Cat5e RJ45 A/B/C Switch, Independent Switching, Manual
SPECIFICATIONS:
  • PORT CONNECTORS: (4) RJ45 female connectors labeled A, B, C and Common, for each of the 5 channels.
  • FRONT PANEL CONTROLS: (5) Rotary switches on front panel selects A, B, or C position for each of the 5 channels.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.67" D. (48.3 x 4.4 x 22.1 cm)
  • WEIGHT: Approximately 5.2 lbs. (2.4 kg)

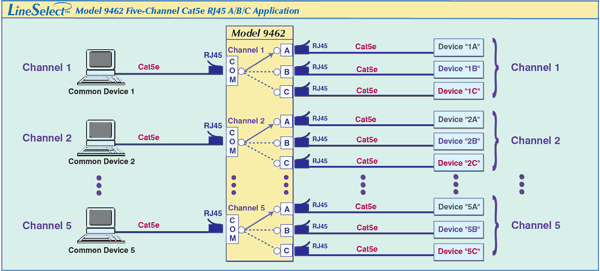

5 CHANNELS OF CAT5e RJ45 A/B/C SWITCHING, INDEPENDENT, MANUAL: The drawing illustrates five independently controlled channels labeled, Channel 1, Channel 2, Channel 3, Channel 4 and Channel 5. Each channel has a COMMON Device connected to an RJ45 COMMON port with access to three devices or networks connected to the RJ45 A, B, and C ports, respectively. The switch is controlled locally via five front panel rotary switches.

LineSelect™ Model 9462 5 Channels of Cat5e RJ45 A/B/C Switching, Independent Switch Application.

FEATURES:

  • Efficient use of panel space; five complete A/B/C switches in a 1U panel height (1.75").
  • Each of the five channels allows quick connection to any one of three networks from one COMMON network.
  • Independently switches each of the five channels via five front-panel rotary switches.
  • High quality sealed switch with self-wiping low impedance contacts.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switches.
  • Tested for Cat5e Compliance.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Manually operated. No power required.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Rackmount configuration is standard.
  • For an eight channel version of the Model 9462, see Model 9714, Cat No 309714.
  • Lifetime warranty against manufacturing defects.
The LineSelect™ Model 9462 enables access to three 10/100/1000 Base-T Cat5e networks for each channel.  Each of the five channels of the LineSelect™ Model 9462 Category 5e A/B/C Switch allows the user to reroute data between three networks with a simple flip of a switch.  The unit supports all 8 pins of the RJ45 Cat5e interface.  No need to plug and unplug cables thereby eliminating connector wear. The LineSelect™ Model 9462 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.
All ESL Manual Data Network Switches are available for export.
