Catalog # 306395 - Model 6395 4-Channel OM3 LC A/OFFLINE/B Switch

    4-Channel OM3 LC A/OFFLINE/B Switch
Click image to enlarge
Base Price:
$18,675.00
Catalog No: 306395
Model No: 6395
Switch Type (Fiber, Ethernet, etc.):Fiber Optic
Positions:2 (e.g. A/B and Common)
Channels per Switch/Chassis:4
Chassis/Rack Configuration:Rackmount
Fiber In/Out Ports:OM3 LC
Fiber Mode:Optical Multimode 3
Fiber Size:50/125 micron
Fiber Type:Duplex
Mirror Technology:Yes
Wavelength Nano:850 nm

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, OM3 LC Duplex
QuickSwitch® 6395 Quad Channel OM3 LC Duplex A/OFFLINE/B Switch
  • ALL OPTICAL switch system designed for maximum performance in OM3 fiber optic applications.

QuickSwitch® 6395 Quad Channel OM3 LC Duplex A/OFFLINE/B Switch

SPECIFICATIONS:

  • PORT CONNECTORS: (3) OM3 LC duplex female connectors labeled A, B, and COMMON for each of four channels.
  • FIBER: 50/125 MICRON, 850 nm.
  • FRONT PANEL CONTROL: (3) Manual pushbuttons allow local switching.
  • DISPLAY: (3) Front panel LED's display switch position, and power status.
  • POWER: UL approved wall mount 100VAC/240VAC, 50Hz/60Hz power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 12.62"D (20.3 x 4.4 x 31.1 cm)
  • WEIGHT: Approximately, 6.5 lbs (3.0 kg)

QUAD CHANNEL OM3 LC DUPLEX A/OFFLINE/B APPLICATION: Each channel has a COMMON Fiber Optic Network connected to the OM3 LC COMMON port with access to Fiber Optic Network 1 and Fiber Optic Network 2, connected to the OM3 LC ports A and B. Each channel of the unit switches to OFFLINE position before switching to the A position or the B position. All channels are switched simultaneously.

  • Optical Multimode 3 (OM3) compliant for laser enhanced applications.
  • Unit switches to OFFLINE position before switching to A or B.

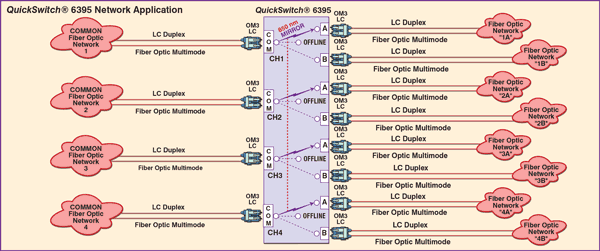

QuickSwitch® 6395 Quad Channel OM3 LC Duplex A/OFFLINE/B Switch Application.

 FEATURES:

  • Access any one of two separate fiber optic networks from one computer for each channel.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • Unit reverts to the OFFLINE position on power loss and isolates all data.
  • Unit switches to OFFLINE position before switching to "A" or "B" position.
  • Simultaneous control of all channels.
  • Front panel pushbutton control.
  • Front panel LED's display present position and power status.
  • All A, B, and COM ports are LC Duplex, 50/125 Micron Laser Enhanced Multi-Mode, OM3 grade fiber, and support a wavelength of 850 nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Optical Multimode 3 (OM3) compliant for laser enhanced 10-Gigabit laser applications.
The QuickSwitch® 6395 Quad Channel OM3 LC Duplex A/OFFLINE/B Switch allows the user to the capability sharing a single port interface device connected to the COMMON port, among two other devices, connected to the "A" and "B" ports, for each channel.
The switch may be controlled locally by manually operating the front panel pushbuttons.  The front panel LED display indicates the switch position and the unit power status.
The QuickSwitch® 6395 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.
WIDE RANGE POWER OPTION AVAILABLE:
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz in place of standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

TO READ THE ARTICLE: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view this file. QuickSwitch® ® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® ® is a registered trademark of Electro Standards Laboratories.

 For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Fiber Optic Switch Form: /Products-Custom/Fiber-Switch/

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.

 *Prices online are subject to change and verification.

 Electro Standards’ products are integrated into systems worldwide,
including but not limited to:

Australia, Canada, Chile, Denmark, France, Germany, Greece, Israel, New Zealand, Philippines, Puerto Rico, Romania, Singapore, South Korea, South Africa, Spain, Switzerland, Thailand, The Netherlands, UAE, UK.
