Catalog # 306297 - Model 6297 A/OFFLINE/B OM3 LC Switch

    A/OFFLINE/B OM3 LC Switch

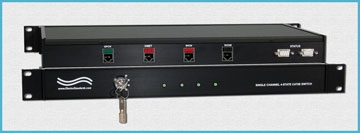

Click image to enlarge
Base Price:
$4,925.00
Catalog No: 306297
Model No: 6297
Switch Type (Fiber, Ethernet, etc.):Fiber Optic
Positions:3, A/OFFLINE/B
Channels per Switch/Chassis:1
Chassis/Rack Configuration:Desktop
Fiber In/Out Ports:OM3 LC
Fiber Mode:Multimode
Fiber Size:50/125 micron
Fiber Type:Duplex
Remote Control Type:RS232 Serial
Remote Control Port:DB9
Mirror Technology:Yes
Wavelength Nano:850 nm
